Descripción
- Teltonika

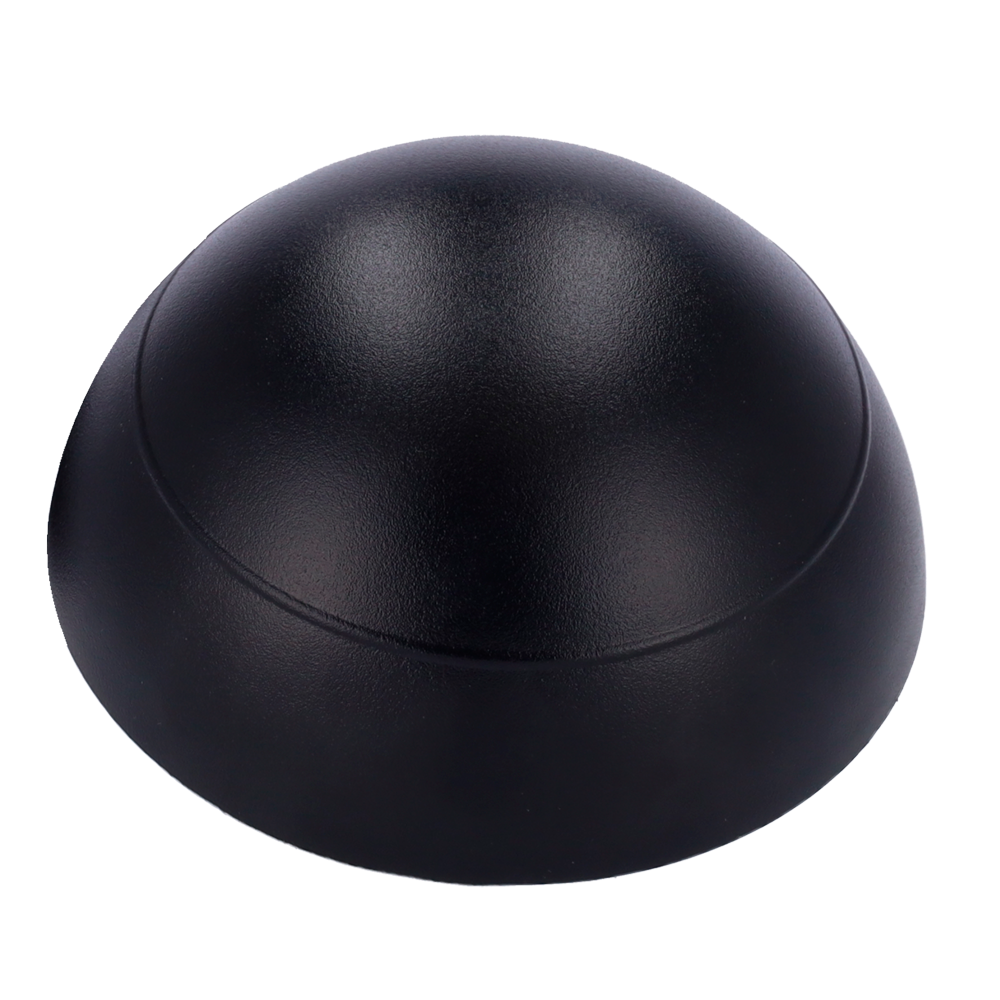

- Antena Combo LTE GNSS Wi-Fi para techo de vehículo
- Frecuencia LTE 698-960/1710-2690 MHz Conector 2x SMA Macho
- Antena GNSS 1575.42-1610 MHz 1x Conector SMA Macho
- Antena Wi-Fi 2400-2483.5/4900-5825 MHz Conector 2x RP SMA Macho
- Certificación Exterior IP65
- 5x Cables RG174 3 metros de longitud
Especificaciones completas
Montaje

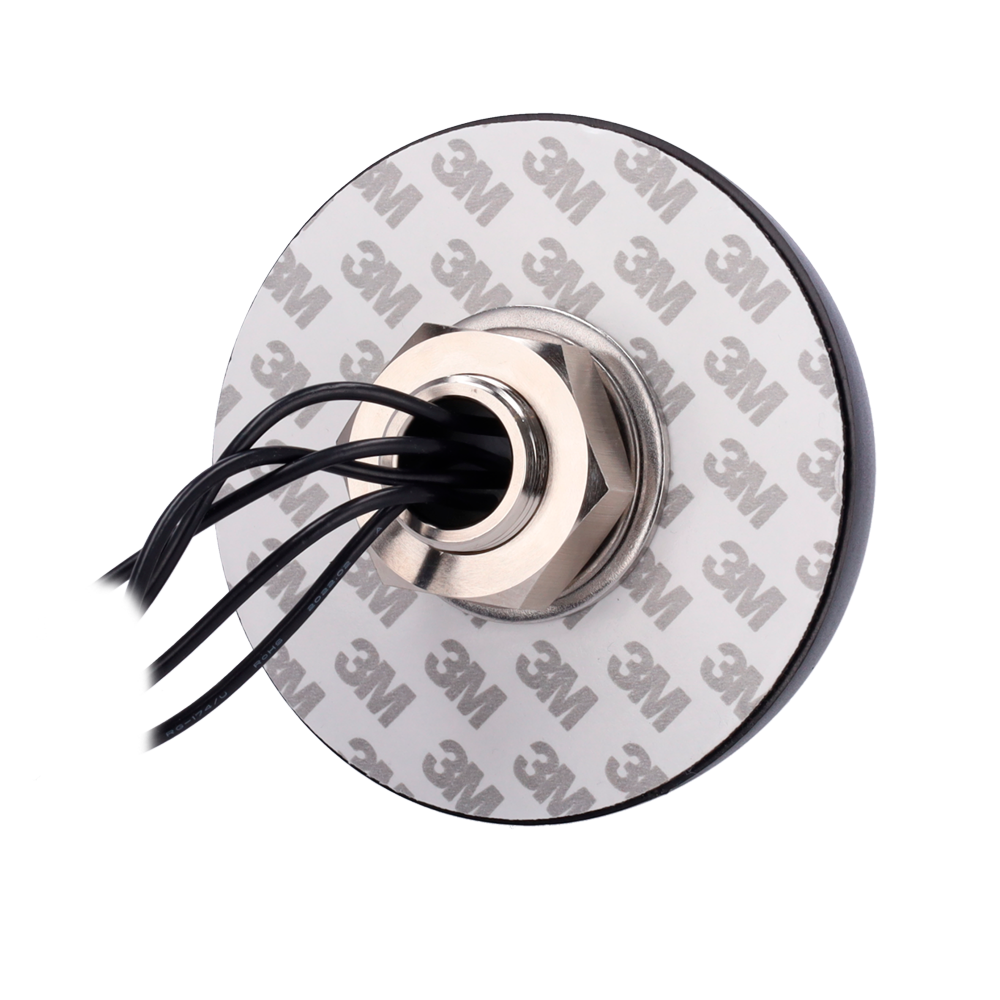

Montaje en techo (atornillado)
Antenas LTE
Rango de Frecuencia: 698-960/1710-2690 MHz
Polarización: Lineal
Ganancia: 3dBi
V.S.W.R < 3.0
Impedancia: 50 ohmios
Conectores 2x SMA Macho
Polarización: Lineal
Ganancia: 3dBi
V.S.W.R < 3.0
Impedancia: 50 ohmios
Conectores 2x SMA Macho
Antenas Wi-Fi
Frecuencia: 2400-2483.5/4900-5825 MHz
Polarización: Lineal
Ganancia: 2dBi
V.S.W.R < 1.5
Impedancia: 50 ohmios
Conectores 2x RP-SMA Macho
Polarización: Lineal
Ganancia: 2dBi
V.S.W.R < 1.5
Impedancia: 50 ohmios
Conectores 2x RP-SMA Macho
Antena GNSS
Frecuencia: 1575.42-1610 MHz
Polarización: RHCP
Impedancia: 50 ohmios
Ganancia LNA: 28±2 dB
Ruido LNA: < 1.5 dB
Voltaje 3-5 VDC
Consumo corriente < 15mA
LNA V.S.W.R < 2.0
Conector 1x SMA Macho
Polarización: RHCP
Impedancia: 50 ohmios
Ganancia LNA: 28±2 dB
Ruido LNA: < 1.5 dB
Voltaje 3-5 VDC
Consumo corriente < 15mA
LNA V.S.W.R < 2.0
Conector 1x SMA Macho
Cables

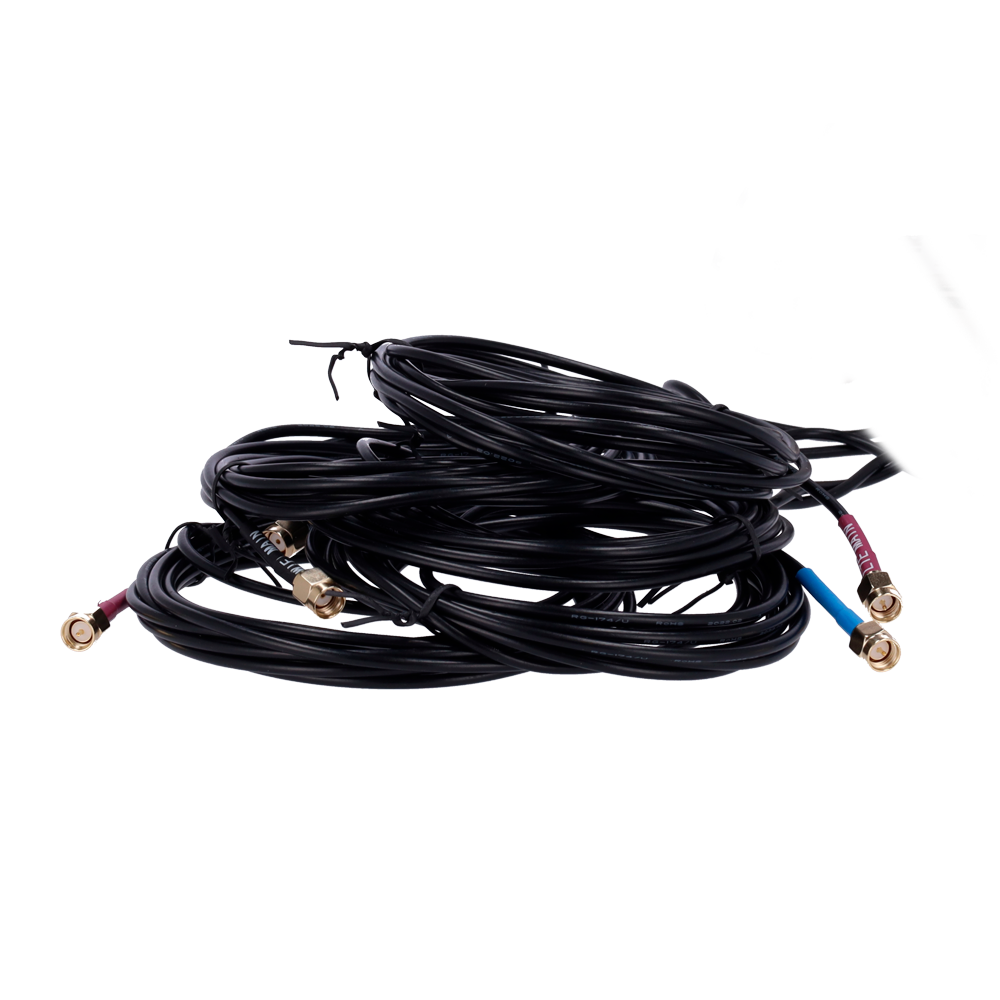

5x RG174, 3 metros
Dimensiones
110x55mm
Peso
< 550g
